Tannai Robotics

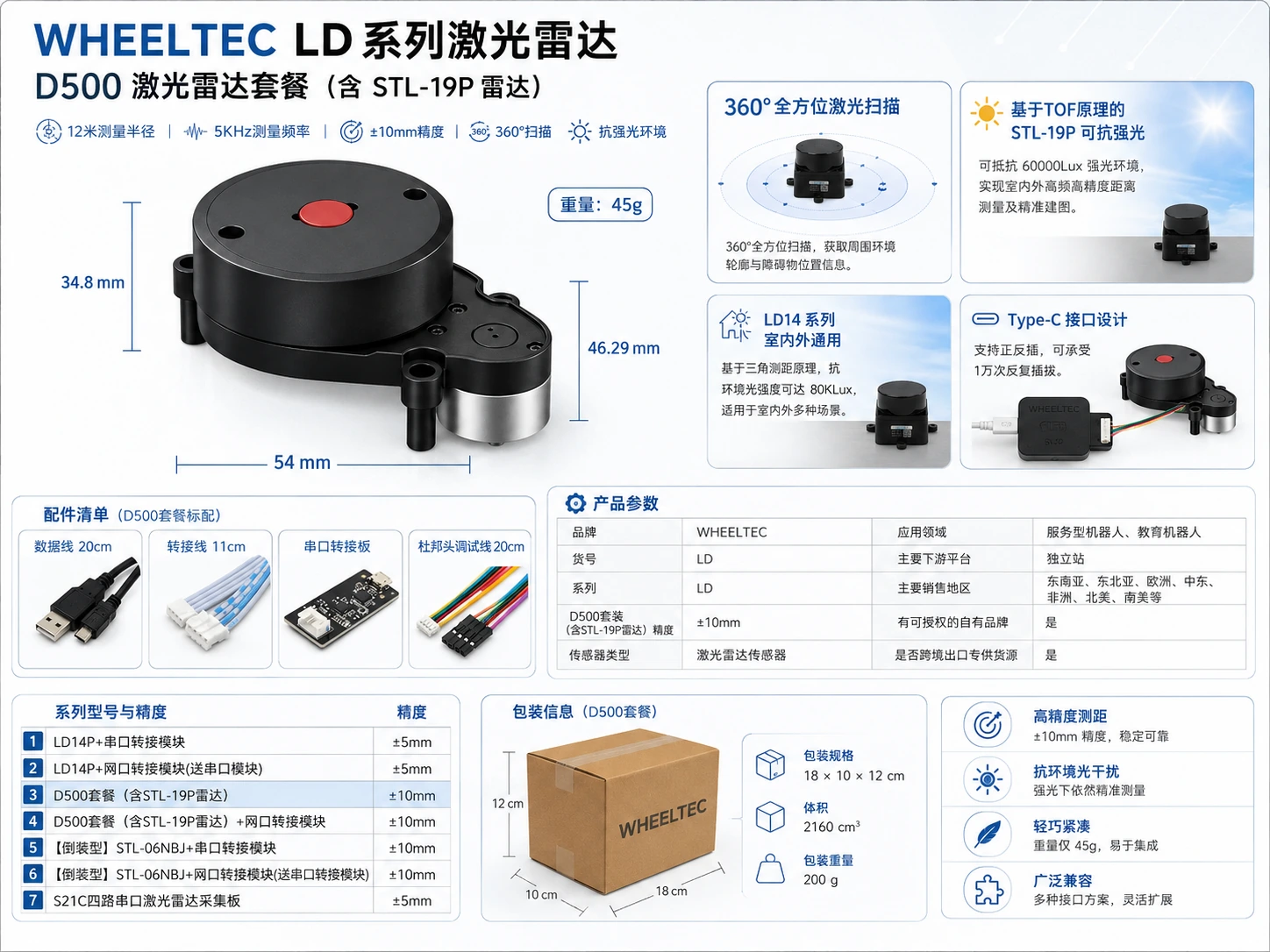

360-degree DTOF laser scanner with 0.03 m minimum range, 12 m maximum range and ±10 mm ranging accuracy. Serial (UART) output via the included USB adapter board; threaded mounting.
Reference specifications · confirm configuration
| Minimum range | 0.03 m |
|---|---|
| Ranging accuracy | ±10 mm |
| Interface | Serial (UART) via included USB adapter board |
Configuration will be reviewed.
Request Volume QuoteOnline checkout is not connected for this product. Submit a purchase request to confirm the order details.
Payment by bank transfer (T/T) against our proforma invoice. Bank details appear only on that invoice — never on this website.
360-degree DTOF laser scanner with 0.03 m minimum range, 12 m maximum range and ±10 mm ranging accuracy. Serial (UART) output via the included USB adapter board; threaded mounting.
Lead time and availability are confirmed at quotation.
Specifications describe the listed configuration. Confirm fit, documentation and current availability before ordering.
| Minimum range | 0.03 m |
|---|---|
| Ranging accuracy | ±10 mm |
| Interface | Serial (UART) via included USB adapter board |
| Mounting | Threaded |
| Operating temperature | -10 to 50 °C |
| Sensor type | DTOF laser |
| Laser safety class | Class 1 (IEC 60825-1:2014) |
| Wavelength | 905 nm |
| Supply | DC 5 V / 290 mA |
| Maximum range | 12 m |
| Sampling rate | 5 kHz |
| Ambient light immunity | 60 kLux |
| Net weight | 45 g |
| Dimensions | 54 x 46.29 mm |
Confirm the itemized packing list, accessories and cables before ordering.
Confirm the itemized packing list, accessories and cables before ordering.
Request the exact-model datasheet, manual and SDK needed for your host system. Unverified download links are not published.
DocumentationLead time and availability are confirmed for your configuration and destination. No fixed dispatch date is implied.
Shipping and Incoterms will be confirmed before project payment.
Warranty duration, coverage and service process must be confirmed for the exact product and destination before purchase. Include the model, order reference and issue description when requesting support.
Name your ROS distribution, operating system and SDK version in the request. Validate the driver on the intended host before committing to a larger order.
Lead time and availability are confirmed for your configuration and destination. No fixed dispatch date is implied.
Payment by bank transfer (T/T) against our proforma invoice. Bank details appear only on that invoice — never on this website.
Share your application, quantity and must-have requirements. Start with a configuration check.
